SINGLE MONITOR ARMS
From 1,890 THB

View this product in store

  • FEATURES


    HASSLE FREE INSTALLATION
    Sturdy C-clamp and grommet mount bases are included with your F7 monitor mount, making for a simple and hassle-free installation process. Have your new monitor mount installed within minutes.


    pic


    Cordless Desktop
    In addition to a suspended display that opens up your desktop, the F7 includes a cable management system that organizes and hides your wires to clear your deskspace — and headspace — from unnecessary clutter.


  • SPECIFICATIONS
    Single Monitor Arm (MA8) – Black
    • Quick release VESA plate (easy for monitor installation)
    • VESA holes 75 x 75 or 100 x 100
    • Fits monitor size from 17" to 36"
    • 360 degree rotation
    • Tilt range from -90 degree to 15 degree
    • Load capacity from 3 kg. up to 12 kg.
    • Tension adjustment for the up/down arm allows you to tailor it for the weight of your screen.
    • Installation flexibility. All necessary tools for an installation are available in the box. Both clamp and grommet installation.

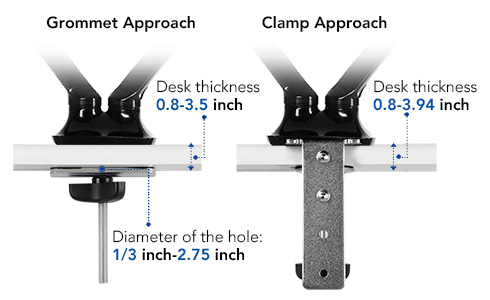

    • Table thickness for Clamp installation is 20-100 mm.
    • Table thickness for Grommet installation is 25-100 mm. (Diameter of Grommet hole is 10-70 mm.)
    • Gas spring hovering system
    • Spacious cable management channels allow wires to move freely while adjusting positions.
    • Make your workspace more spacious. Adjust your monitor to be at your eye level.


    Single Monitor Arm (F7) – Black
    • VESA holes 75 x 75 or 100 x 100
    • Fits monitor size from 10” to 27”
    • Load capacity: 2 kg. - 9 kg.
    • 360 degree rotation
    • Tilt range from -85 degree to 15 degree
    • Tension adjustment for the up/down arm allows you to tailor it for the weight of your screen.
    • Installation flexibility. All necessary tools for an installation are available in the box. Both clamp and grommet installation.
    • Table thickness for Clamp installation is 20-100 mm.
    • Table thickness for Grommet installation is 20-88 mm. (Diameter of Grommet hole is 10-70 mm.)
    • Gas spring hovering system
    • Spacious cable management channels allow wires to move freely while adjusting positions.
    • Make your workspace more spacious. Adjust your monitor to be at your eye level.

    ** Our monitor arms can not be used with TVs or any thick backside monitors. Can not be used with VESA plate adapters or any adaptation to the arm. Can not be used with VESA holes that are placed on the top position.**



    COMPARISON SUMMARY BETWEEN MODELS OF SINGLE MONITOR ARM
    MA8 F7
    Quick Release VESA plate Yes - For Easy Installation No
    Installation Approach Grommet - Desk thickness 25-100 mm
    Clamp - Desk thickness 20-100mm
    Grommet - Desk thickness 20-88 mm
    Clamp - Desk thickness 20-100mm
    Max Height 51 cm. 41.4 cm.
    Max Extension 62.2 cm. 41.2 cm.
    Screen Size 17-36 in. 10-27 in.
    Load Capacity 3-12 kg. 2-9 kg.
    Tilt Range -90 to 15 Degrees -85 to 15 Degrees


    DOWNLOAD SPECIFICATIONS (PDF) - MA8
    DOWNLOAD SPECIFICATIONS (PDF) - F7


PLAY PRODUCT VIDEO
